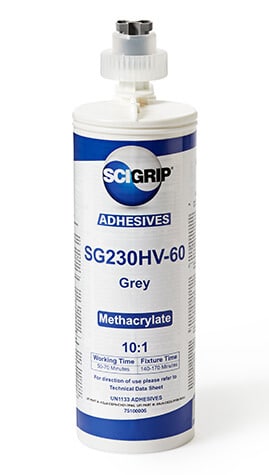

SCIGRIP SG230HV Structural Adhesive 490ml
SCIGRIP SG230HV Structural Adhesive 490ml
High-viscosity 10:1 methacrylate adhesive for large structural bonding. Ideal for marine and transportation.
CHARACTERISTICS
CHARACTERISTICS
TECHNICAL APPROVALS AND QUALITY LABELS
TECHNICAL APPROVALS AND QUALITY LABELS
Product Classification & Standards
- Product Type: Advanced high-viscosity, 2-component 10:1 Methacrylate structural adhesive
- Performance Profile: Designed for heavy-duty marine, transportation, and construction applications. Suited for large structural parts requiring long open times and filling deep irregular gaps up to 1.5 inches (39 mm) with zero sag.
| Technical Property | Specification (SG230-40 Variant) |
|---|---|
| Mix Ratio (Volume / Weight) | 10:1 / 8.4:1 |
| Mixed Density | 0.99 g/cc (8.25 lbs/gal) |
| Working Time | 35 - 45 minutes |
| Fixture Time | 60 - 75 minutes |
| Tensile Strength | >3,000 PSI (21 MPa) [ASTM D638] |
| Lap Shear Strength (Primed Al) | >2,000 PSI (14 MPa) [ASTM D1002] |
| Maximum Tensile Elongation | >100% [ASTM D638] |
| Service Temperatures | -40°C to +82°C (-40°F to 180°F) |
| Flash Point (Part A / Part B) | 12°C / >60°C |
Storage & Shelf Life
- Shelf Life: 9 months from date of manufacture.
- Storage Conditions: Continuous steady-state storage temperature between 13°C and 27°C (55°F to 80°F). Keep containers tightly sealed when not in use. Avoid direct sunlight.
APPLICATIONS
APPLICATIONS
Share
Request Trade Quotation
Specify your estimated volumes and substrates. Our technical commercial desk will issue a formal pricing sheet within 2 business hours.
